Arrizza s.r.l.

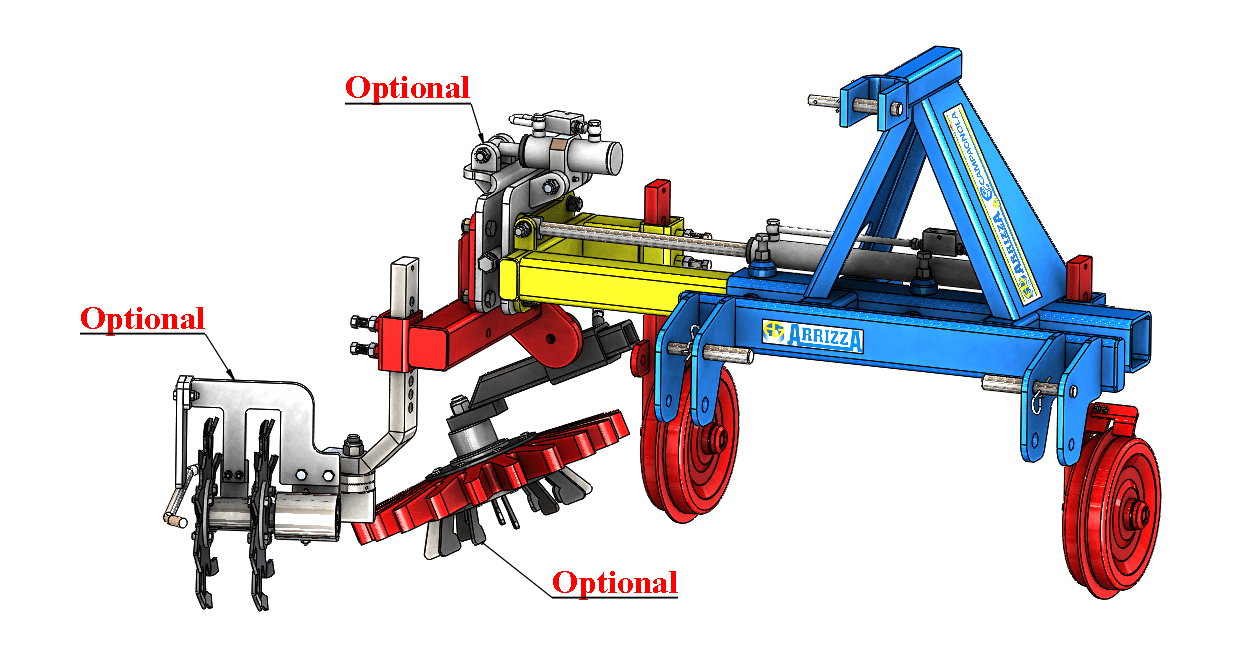

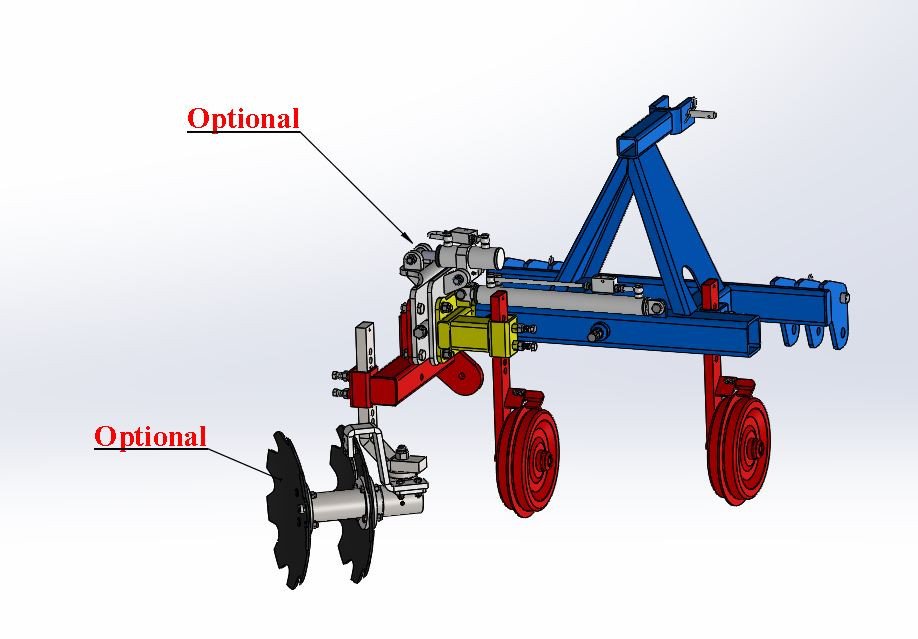

Machine features

Tool carrier available in front or rear version
3-points frame complete with couplings cat. I - II
RH and LH wheels for depth mechanical adjustment and side stability control
RH lateral hydraulic widening with 2 quick tractor couplings
RH universal lateral reversible support with predisposition for tools installation

With hydraulic movements option controlled by electrodistributor and multifunction joystick is required a minimum oil flow rate 22 l/min and maximum 60 l/min

Contact request

Fille the form to get in touch.
The marked fields with * are required

Name, last name*

Email*

Message

I accept Terms and conditions

Configurator

Select model

Model	Code	Minimum power	Single widening	Machine width	Min width row	Weight

Expo single SMART 1S	2043	40	20	87	100	170
Expo single SMART 1	1810	40	30	95	105	180
Expo single SMART 2	1811	40	40	105	115	195
Expo single SMART 3	1812	40	50	120	130	210

Version

Front

Back

Agriculture Smart

Telemetric data interconnection and control system (ex. Industry 4.0) click here for info...

Select optionals

		Code	Description
		1132	Electrohydraulic cast iron distributor with multifunction joystick to operate 2 double effect cylinders separately. To work it only needs 2 quick tractor couplings. Applicable only when ordering. Note The codes 1132 e 2023 can be inserted in the configuration but the machine can be equipped with only one option at a time..
		2023	Electrohydraulic cast iron distributor with multifunction joystick to operate 3 double effect cylinders separately. To work it only needs 2 quick tractor couplings. Applicable only when ordering. Note The codes 1132 e 2023 can be inserted in the configuration but the machine can be equipped with only one option at a time..
		1190	4m power cable (necessary for tractors without 3-pole female socket).
		1411	Power cable 4m extension.
		1158/S	Push button for rotary brush/mower head wire rotation stop. Applicable only when ordering.
		1794	Adding cost for RH and LH 300 x 120 vulcanized rubber wheels with steel core installation (in substitution of standard wheels).
		AINCLEXDX022	RH hydraulic inter-row inclination with 2 quick tractor couplings. The width of the closed machine increases by +7cm.
		AINCLEXDX022/J	RH hydraulic inter-row inclination with joystick multifunction for electrohydraulic cast iron 2 elements distributor. The width of the closed machine increases by +7cm. Only when ordering.
		AINCLEXDX022/J	RH hydraulic inter-row inclination with joystick multifunction for electrohydraulic cast iron 3 elements distributor. The width of the closed machine increases by +7cm. Only when ordering.
		1264	Universal no traction adjustable ridger bit disc diameter 40cm.
		1312	RH no traction adjustable serrated ridger 2-discs diameter 40cm complete with cleaner on first disk.
		ASTARDEXD031	RH fingerstar diameter 54cm (blue - hard).
		1305	RH fingerstar diameter 70cm (yellow - medium).
		ASTARDEXD026	RH fingerstar diameter 70cm (red - hard).
		1419	RH starcut blade set with 2 stars.
		1730	RH starcut blade set with 3 stars.
		1308	RH short wires mowers head and adjustable height hood complete with adapter and 2 quick tractor couplings.

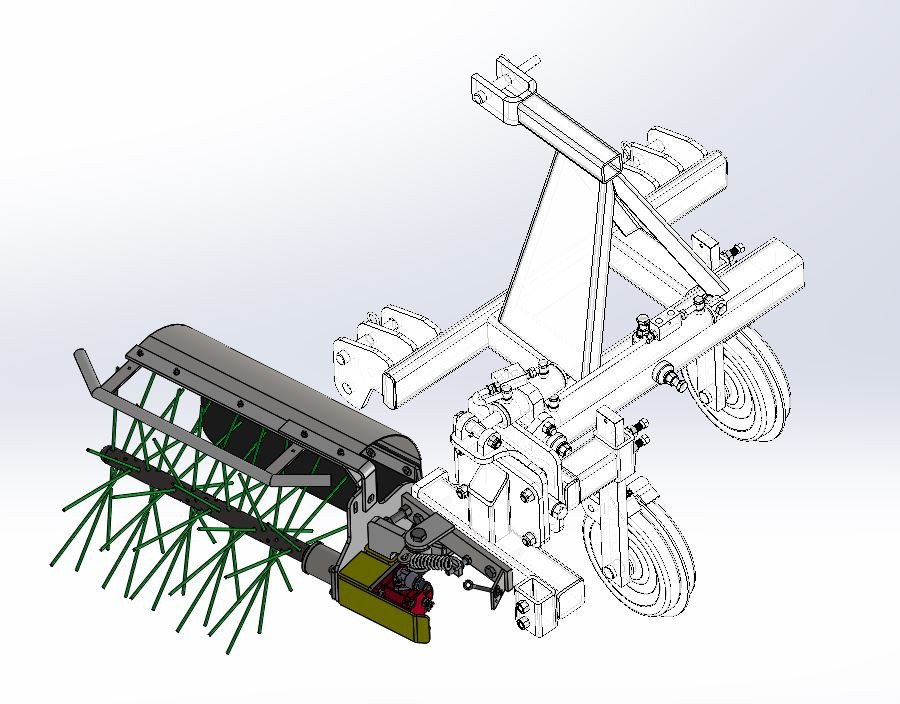

		1309	RH hydraulic rotary brush with oscillating adapter and 2 quick tractor couplings. Limitations: on SMART 1 front version is not applicable / on SMART 2 front version is applicable but need to equip RH hydraulic inclination code 1795.
		MTRBNWUP009	RH vertical wires mower head with hydraulic tipping at 2 quick tractor couplings and adapter for version SMART. Limits: is not applicable on SMART 1 - 2 - 3 front version Note The codes MTRBNWUP009/J e MTRBNWUP009 can be inserted in the configuration but the machine can be equipped with only one option at a time..
		2102	RH hydraulic system kit complete with cast iron flow control and microfilter kit with clogging indicator for power tool management. Only when ordering.
		2030	RH mower head complete with adapter, feeler and feeler holder and 2 quick tractor couplings to SPOL/TRB management faucet. ONLY WITH INCLINATION AND HYDRAULIC DISTRIBUTOR
		2029	RH hydraulic rotary brush with oscillating adapter and 2 quick tractor couplings to SPOL/TRB management faucet. ONLY WITH INCLINATION AND HYDRAULIC DISTRIBUTOR Limits: on front SMART 1 is not applicable
		MTRBNWUP009/J	RH vertical wires mower head with hydraulic tipping controlled by multifunction joystick and adapter for version SMART. Limits: is not applicable on SMART 1 - 2 - 3 front version Note The codes MTRBNWUP009/J e MTRBNWUP009 can be inserted in the configuration but the machine can be equipped with only one option at a time..
