Machine features

  • Cultivator with 30x30 spiral spring and cage roller
  • Pumps connected directly to the tractor power take-off (for rubber-tyred and crawler tractors)
  • Hydraulic predisposition for the application of traction utensils with PATENTED NON STOP VALVE
  • Kit including multiplier double pump, hoses, filter, tank and oil
  • Single heat exchanger with double thermostat
  • Multifunction electronic control unit
  • 55 cm RH side inter-row blade with multifunction joystick for electrohydraulic emergency blade return
  • Bulldozer-like tilling spur with fin
  • 4,5 - 21 - 26 cm ploughshares (to specify during the order)
  • Hydraulic roller adjustment with multifunction joystick
  • RH and LH depth adjustment wheels with bearings (cannot be installed upon Vittoria 3, 4, 5 and 6)
  • RH hydraulic tool inclination with multifunction joystick





Contact request

Fille the form to get in touch.
The marked fields with * are required

Configurator

Select model

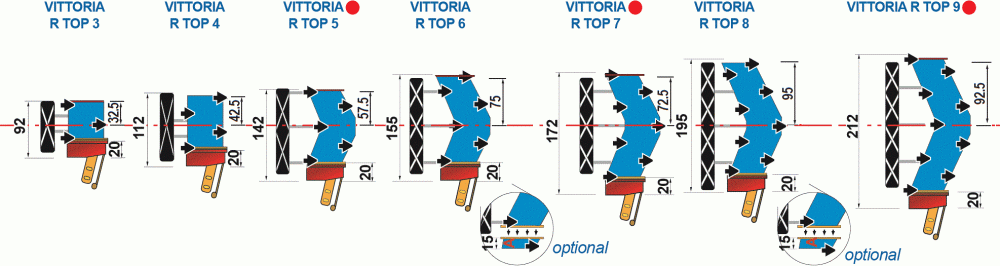

Model Code Minimum power Springs Machine height Machine width Min width row Weight
Vittoria R TOP 3 0747 20 3 53 90 115 510
Vittoria R TOP 4 0748 20 4 53 110 135 525
Vittoria R TOP 5 0749 30 5 53 140 165 540
Vittoria R TOP 6 0750 40 6 53 155 180 555
Vittoria R TOP 7 0751 40 7 53 170 195 580
Vittoria R TOP 8 0838 60 8 53 195 220 605
Vittoria R TOP 9 0752 60 9 53 210 235 630
Blade/s
Ploughshare
Industry 4.0

Select optionals

Code Description
Nr. 3 adapters kit in boron steel complete of reversible soc and RH and LH laterals fins. 1328

Nr. 3 adapters kit in boron steel complete of reversible soc and RH and LH laterals fins.
Nr. 4 adapters in boron steel complete of reversible chisel and RH and LH laterals fins. 1329

Nr. 4 adapters in boron steel complete of reversible chisel and RH and LH laterals fins.
Nr. 5 adapters kit in boron steel complete of reversible soc and RH and LH laterals fins. 1330

Nr. 5 adapters kit in boron steel complete of reversible soc and RH and LH laterals fins.
Nr. 6 adapters in boron steel complete of reversible chisels and RH and LH laterals fins. 1331

Nr. 6 adapters in boron steel complete of reversible chisels and RH and LH laterals fins.
Nr. 7 adapters kit in boron steel complete of reversible soc and RH and LH laterals fins. 1332

Nr. 7 adapters kit in boron steel complete of reversible soc and RH and LH laterals fins.
Nr. 8 adapters in boron steel complete of reversible chisels and RH and LH laterals fins. 1333

Nr. 8 adapters in boron steel complete of reversible chisels and RH and LH laterals fins.
Nr. 9 adapters kit in boron steel complete of reversible soc and RH and LH laterals fins. 1334

Nr. 9 adapters kit in boron steel complete of reversible soc and RH and LH laterals fins.
4m power cable (necessary for tractors without 3-pole female socket). 1190

4m power cable (necessary for tractors without 3-pole female socket).
Power cable 4m extension. 1411

Power cable 4m extension.
Extension 3m cable for 8-channel multi-function joystick. 1192

Extension 3m cable for 8-channel multi-function joystick.
RH button for feeler deactivation to work. Only when ordering. 1052/R - TOP

RH button for feeler deactivation to work. Only when ordering.
Push button for immediate RH rotary brush/mower head wire rotation stop. Applicable only when ordering. 1158/V

Push button for immediate RH rotary brush/mower head wire rotation stop. Applicable only when ordering.
Patented hydraulic ascent and descent system of the RH inter-row: 20cm movement, multifunction joystick, 10cm width. Applicable only when ordering. 1298

Patented hydraulic ascent and descent system of the RH inter-row: 20cm movement, multifunction joystick, 10cm width. Applicable only when ordering.
RH blade with clod breaker, fin and feeler 45cm (additionally at the standard blade). 0982

RH blade with clod breaker, fin and feeler 45cm (additionally at the standard blade).
RH blade with clod breaker, fin and feeler 65cm (additionally to standard blade). 0695

RH blade with clod breaker, fin and feeler 65cm (additionally to standard blade).
RH non-stop feeler pin holder. 1160

RH non-stop feeler pin holder.
RH oscillating feeler pin holder adjustable in height. 1085

RH oscillating feeler pin holder adjustable in height.
RH stump cleaner for inter-row kit (remove the fixing plate when installing code 1247 RH vertical wires mower head). 1050

RH stump cleaner for inter-row kit (remove the fixing plate when installing code 1247 RH vertical wires mower head).
RH sled for terrain with stones or superficial roots. 0483

RH sled for terrain with stones or superficial roots.
RH 45cm inter-row plant lifting ploughshare. 1187

RH 45cm inter-row plant lifting ploughshare.
RH 45cm inter-row plant lifting ploughshare with specify stump cleaner. AVOMSQCDP007

RH 45cm inter-row plant lifting ploughshare with specify stump cleaner.
RH 55cm inter-row plant lifting ploughshare. 1268

RH 55cm inter-row plant lifting ploughshare.
RH 55cm inter-row plant lifting ploughshare with specify stump cleaner. AVOMSCCDP019

RH 55cm inter-row plant lifting ploughshare with specify stump cleaner.
RH no traction bulldozer-disk diameter 32cm. 0488

RH no traction bulldozer-disk diameter 32cm.
Universal no traction adjustable rounded tiller disc diameter 36cm. 1266

Universal no traction adjustable rounded tiller disc diameter 36cm.
Universal no traction adjustable ridger bit disc diameter 40cm. 1264

Universal no traction adjustable ridger bit disc diameter 40cm.
RH no traction adjustable serrated ridger 2-discs diameter 40cm complete with cleaner on first disk. 1312

RH no traction adjustable serrated ridger 2-discs diameter 40cm complete with cleaner on first disk.
RH starcut blade set with 2 stars. 1419

RH starcut blade set with 2 stars.
RH starcut blade set with 3 stars. 1730

RH starcut blade set with 3 stars.
Adapter for application of RH driving tools (15cm). 0657

Adapter for application of RH driving tools (15cm).
RH mower head complete with adapter, feeler and feeler holder.  1818

RH mower head complete with adapter, feeler and feeler holder.
RH hydraulic short wires mower head with gear motor and oscillating adapter.  ATRFCDX022

RH hydraulic short wires mower head with gear motor and oscillating adapter.
RH hydraulic rotary brush with gear motor and oscillating adapter.  1150

RH hydraulic rotary brush with gear motor and oscillating adapter.
RH traction rotary plant lifter with 4 shedding fins diameter 40cm. 1042

RH traction rotary plant lifter with 4 shedding fins diameter 40cm.
RH kit to transform the rotary plant lifter in cutter diameter 40cm to 3 hoes. AKTSFDQTZ002

RH kit to transform the rotary plant lifter in cutter diameter 40cm to 3 hoes.
RH traction rotary plant lifter with 4 shedding fins diameter 50cm. 1043

RH traction rotary plant lifter with 4 shedding fins diameter 50cm.
RH circular cutter hydraulic kit for 55cm or 65cm inter-row blade. AFRCLEXDX021

RH circular cutter hydraulic kit for 55cm or 65cm inter-row blade.
RH kit to transform the rotary plant lifter in cutter diameter 50cm to 4 hoes. AKTSFDCQZ003

RH kit to transform the rotary plant lifter in cutter diameter 50cm to 4 hoes.
RH traction 3-hoes hydraulic circular cutter diameter 40cm with brush. AFRECSQDX011

RH traction 3-hoes hydraulic circular cutter diameter 40cm with brush.
RH traction 3-hoes hydraulic circular cutter diameter 40cm with engine. AFRECQCDX025

RH traction 3-hoes hydraulic circular cutter diameter 40cm with engine.
RH kit to transform the cutter in rotary plant lifter diameter 40cm to 4 fins. 1149

RH kit to transform the cutter in rotary plant lifter diameter 40cm to 4 fins.
RH traction 4-hoes hydraulic circular cutter diameter 50cm. AFRECCCDX013

RH traction 4-hoes hydraulic circular cutter diameter 50cm.
RH kit to transform the cutter in rotary plant lifter diameter 50cm to 4 fins. 1093

RH kit to transform the cutter in rotary plant lifter diameter 50cm to 4 fins.
RH traction 2-lifting disc 36cm diameter. 1289

RH traction 2-lifting disc 36cm diameter.
RH traction disk set with 3 plant lifting disks diameter 36cm. 0717

RH traction disk set with 3 plant lifting disks diameter 36cm.
RH stump cleaner on 2 / 3 / 4 traction disk set plant lifting disks diameter 36cm. 1384

RH stump cleaner on 2 / 3 / 4 traction disk set plant lifting disks diameter 36cm.
Back to configuration New configuration

The marked fields with * are required

Table form

Model Code Minimum power Springs Machine height Machine width Min width row Weight
Vittoria R TOP 3 0747 20 3 53 90 115 510
Vittoria R TOP 4 0748 20 4 53 110 135 525
Vittoria R TOP 5 0749 30 5 53 140 165 540
Vittoria R TOP 6 0750 40 6 53 155 180 555
Vittoria R TOP 7 0751 40 7 53 170 195 580
Vittoria R TOP 8 0838 60 8 53 195 220 605
Vittoria R TOP 9 0752 60 9 53 210 235 630
